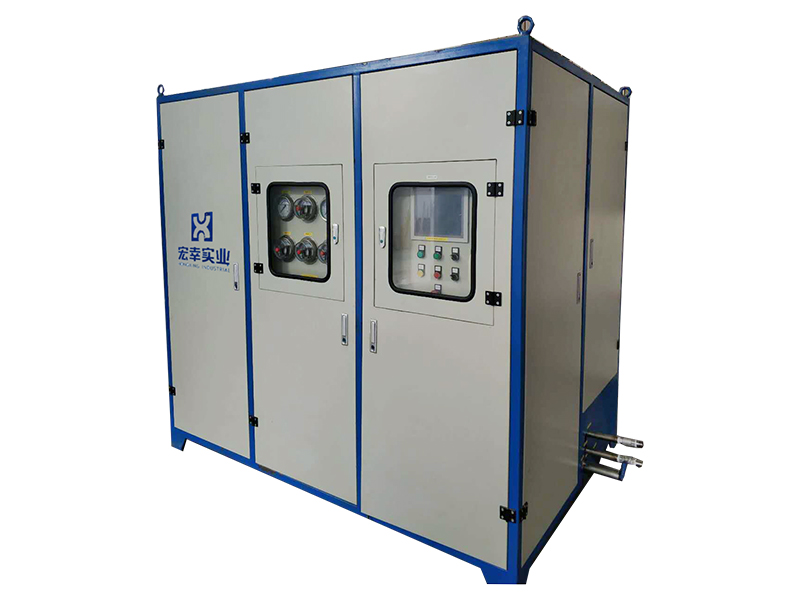

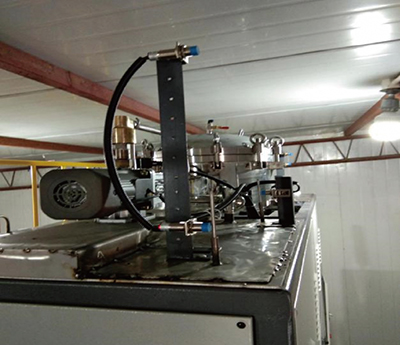

As a professional manufacturer of die casting furnaces, Hongxing also supplies specialized recycling equipment for water and solid waste for removal during melting magnesium and aluminum alloys. The TD-q recycling equipment integrates a number of functions, including automatic water treatment, stripper machine recycling, automatic backwashing, intelligent automatic control and automatic proportioning. With a small footprint, automatic cleaning, a high recycling efficiency and excellent finished liquid quality, the recycling equipment is ideal for use in small, medium, and large die casting factories.
Model | 1000kg | 500kg |
Dimensions | 2660*1600*2200mm | 1860*1220*1900mm |
Total power consumption | 4kw | 3.6Kw |
Max. Gas consumption/h (0.82mpa) | 1-inch pump: 1.73m³/min; 1.5-inch pump: 3.53m³/min | 0.68m³-1.73m³/min |
Waste water treatment capacity/h | 1000kg | 500kg |
Effective components recovery rate | > 98% | |
Output/h | 1000-1100kg | 500-550kg |
Output pressure | 0.2-1.0mpa, can be set on the screen | |

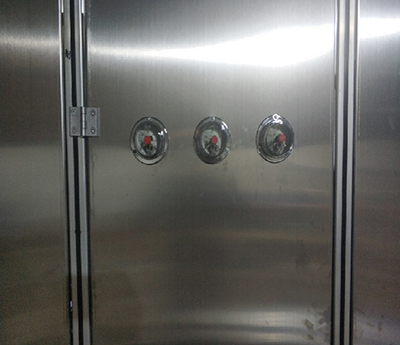

Online concentration detection precision | 12.5 digits (control accuracy of 0.5%) | |
Online concentration detection response speed | 1second (can be configured from 0.001second to 5seconds) | |
Required supply voltage | 380V (customizable) | |
Required compressed air pressure | 0.6-0.8mpa | |
Required supply water pressure | 0.2-0.4mpa |
