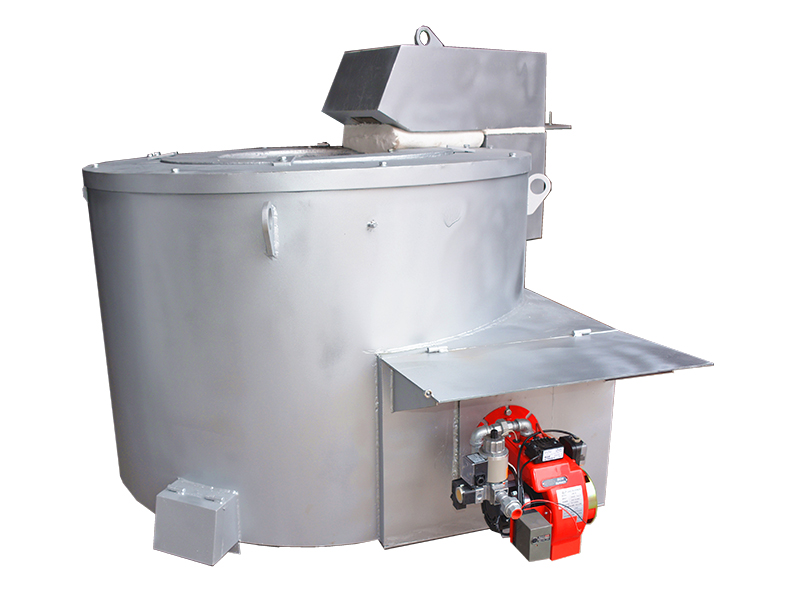

Gas or Oil Fired Crucible Furnace
Specifications
- Type: crucible
- Shape: round
- Energy: heavy oil, diesel, natural gas or methane gas

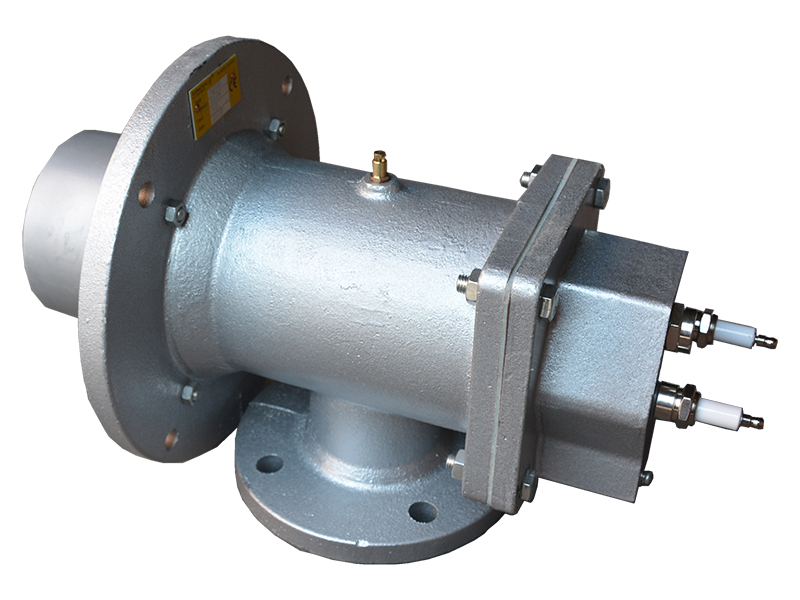

- Structure: furnace casing, crucible, furnace lining, natural gas burner, PID temperature control system
Working principle
The gas or oil fired crucible furnace melts the aluminum alloy using radiant and uniform heat generated by the burning of heavy oil, diesel, and natural gas or methane gas.
Features
- The crucible furnace is suitable for the melting and holding of non-ferrous metals and their alloys like aluminum alloy and zinc alloy.
- It can be fueled by heavy oil, diesel, natural gas or methane gas.
- The crucible furnace can be designed as opened or closed upon request.
- The lifting speed is adjustable and hydraulically controlled.
- A thermometer with ceramic protective tube is used to measure the temperature of molten metals to avoid impurity contamination.
- PID automatic calculation is adopted to control the temperature.
- A leakage detection device for molten aluminum is set to achieve safety inspection.
Parameters
| Model | Crucible configuration | Capacity (kg) |
| HX-150 | CPM350 Crucible Furnace | 150 |
| HX-200 | CPM450 Crucible Furnace | 200 |
| HX-250 | CPM600 Crucible Furnace | 250 |
| HX-300 | CPM700 Crucible Furnace | 300 |
| HX-350 | CPM750 Crucible Furnace | 350 |
| HX-400 | CPM800 Crucible Furnace | 400 |
| HX-450 | CPM1000 Crucible Furnace | 450 |
| HX-600 | CPM1300 Crucible Furnace | 600 |
| HX-850 | CPM1800 Crucible Furnace | 850 |
Inquiry
Custom-Made Furnaces Images
Hongxing Corporation has been designing and manufacturing industrial furnace/ovens and heat treating equipment since 2006.Our products cover all types of melting and holding furnace or heat treatment equipment.
