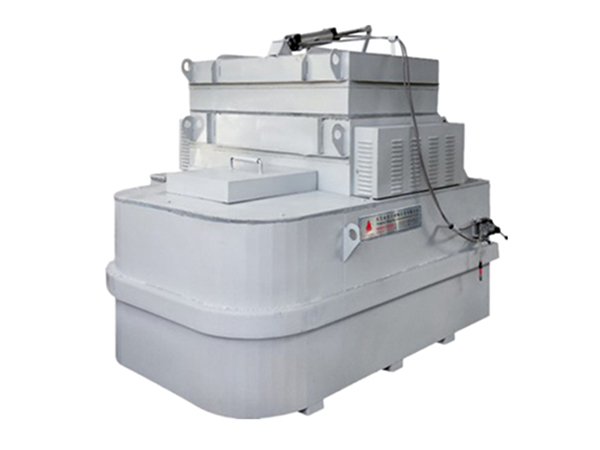

The non-crucible furnace is widely used for melting and holding of small aluminum ingots die-cast by a die casting machine below 500T. The interior of the furnace is made of high-grade refractory and thermal insulation material, which is integrally cast and molded to ensure the average temperature of the furnace surface is below 55°C, thus effectively reducing energy consumption and improving the high-temperature working environment.
Model | Melting capacity (kg/h) | Molten aluminum volume (kg) | Power (kw) | Furnace size (L*W*H) |
ALPM-50kg | 80 | 500 | 40 | 2.4*1.5*1.6(mm) |
ALPM-100kg | 100 | 600 | 60 | 2.5*1.5*1.7(mm) |
ALPM-120kg | 120 | 700 | 70 | 2.6*1.6*1.8(mm) |
ALPM-150kg | 150 | 800 | 80 | 2.7*1.7*1.8(mm) |
ALPM-200kg | 200 | 900 | 90 | 2.8*1.8*2.0(mm) |
Hongxing Corporation has been designing and manufacturing industrial furnace/ovens and heat treating equipment since 2006.Our products cover all types of melting and holding furnace or heat treatment equipment.
