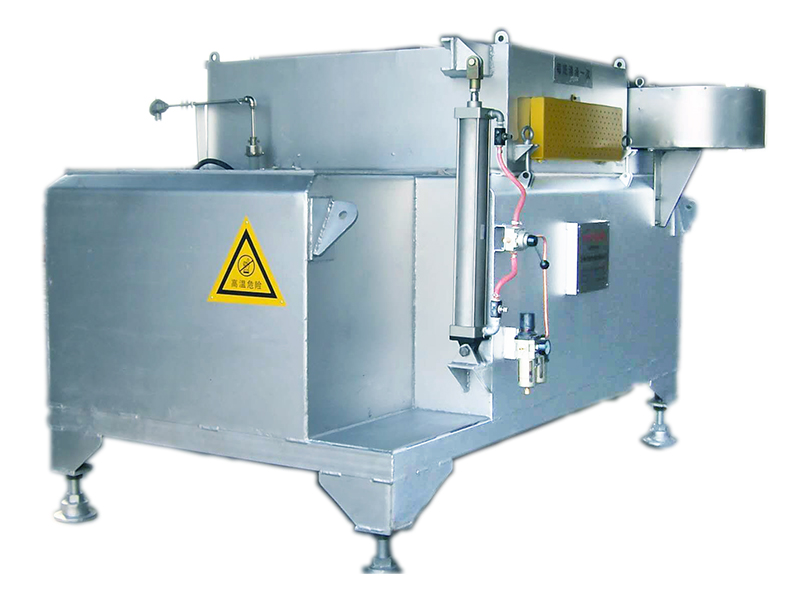

Electric Holding Furnace
Introduction
The electric holding furnace is an energy-saving and eco-friendly device for melting and holding aluminum alloy, making it suitable for melting and holding non-ferrous metals around the die casting machine.
Features
- The material poured in the molten bath will not stick to the aluminum, effectively controlling molten metal penetration to the material.
- The electric holding furnace is equipped with an advanced control system, digital display, and control instruments such as AI temperature control.
- With a uniform internal temperature, the furnace has an outstanding heat preservation effect, allowing molten aluminum to remain in the molten state after 8 hours of power failure. The furnace casing temperature is controlled below 60℃, ensuring heat leakage is fully controlled to ensure an energy-saving and safe melting process.
- The heating system is powered using electric energy with no noise, no pollution and the melting accuracy up to 99%, which meets the requirements of international environmental technical standards for production equipment.
- An automatic thermostat with a PID system can automatically control the power output upon customer request, thus saving energy.
Parameters
| Model | Melting capacity (kg/h) | Molten bath capacity (kg) | Power consumption (kw/h) | Adaptive Die Cast Machine |
| HX-40 | 40 | 200 | 15-17 | 125-160T |
| HX80 | 80 | 400 | 30-35 | 160-200T |
| HX-100 | 100 | 500 | 40-42 | 200-280T |
| HX120 | 120 | 600 | 48-50 | 280-400T |
Inquiry
Custom-Made Furnaces Images
Hongxing Corporation has been designing and manufacturing industrial furnace/ovens and heat treating equipment since 2006.Our products cover all types of melting and holding furnace or heat treatment equipment.
