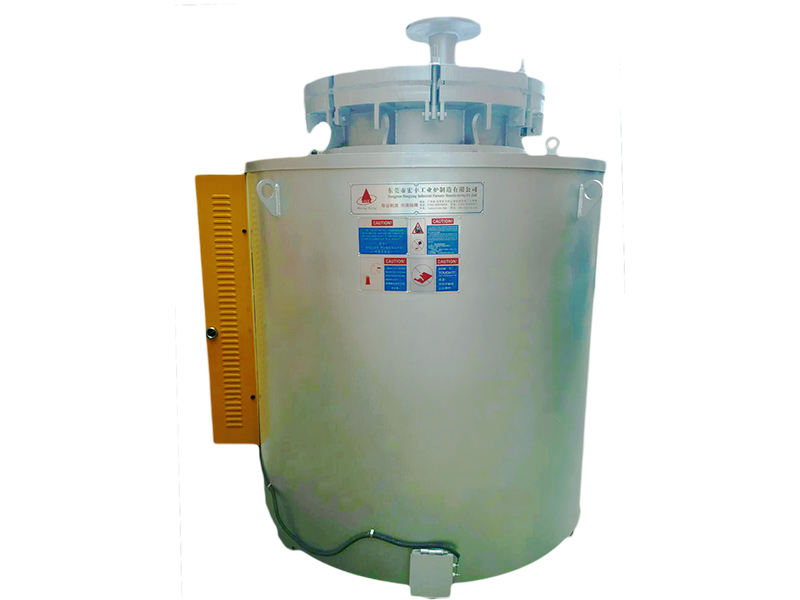

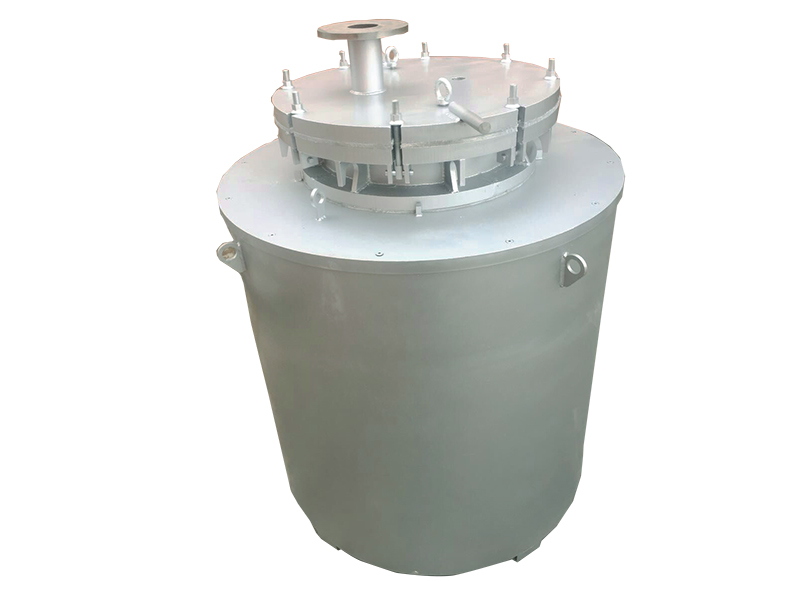

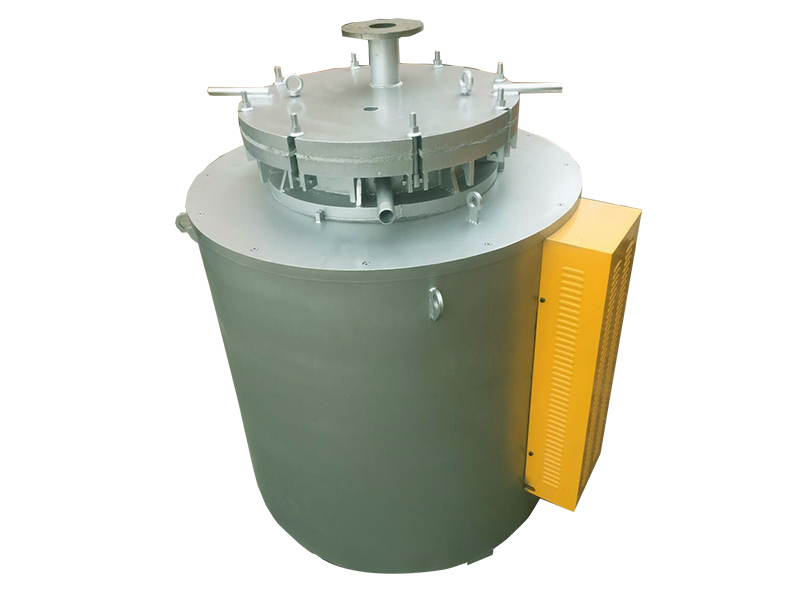

Melting and Holding Furnace for Non-ferrous Metals

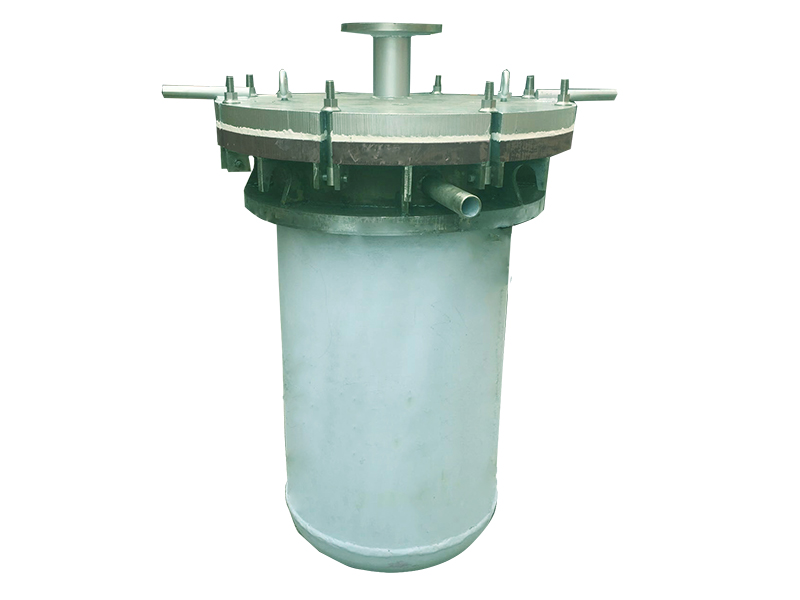

Pouring Ladles for Magnesium Casting

• Melting rate: 60kg/h
• Capacity: 300kg (can be customized or modified according to customer needs)
• Processing temperature: 680 ℃ -800 ℃
• Function: melting and casting molding magnesium alloy ingots
• Total power: 60KW, individual temperature control
• Crucible thickness: 25mm
• Crucible cover: stainless steel with a thickness of 40mm

• Magnesium alloy furnace
• Insulation system
• Heating system
• Bimetallic composite crucible

• The casing is constructed from processed A3 steel plate and profile steel.
• The insulation layer is composed of high-quality Nano-plate, insulation material, and calcium silicate board, which are laid in the outer enclosure.
• The furnace lining is constructed using high-quality imported light mullite insulation bricks that provide good insulating effects.
• The furnace wire is a flat belt heating wire imported from Sweden, which is fixed in the wall and bottom of the hearth for heating.
• A liquid leakage alarm device is equipped in the furnace, whose electrode is connected to an alarm system in the electric furnace control cabinet, so the furnace can be shut down immediately if the alert is triggered.
• The insulation system is composed of:
  · Two layers of high temperature insulation boards (Morgan-imported)
  · Three layers of insulated cotton with the density of 260
  · High-Purity high-temperature insulating brick: mullite (Morgan-imported)
  · Nano insulation material
