Melting and Holding Furnace for Non-ferrous Metals

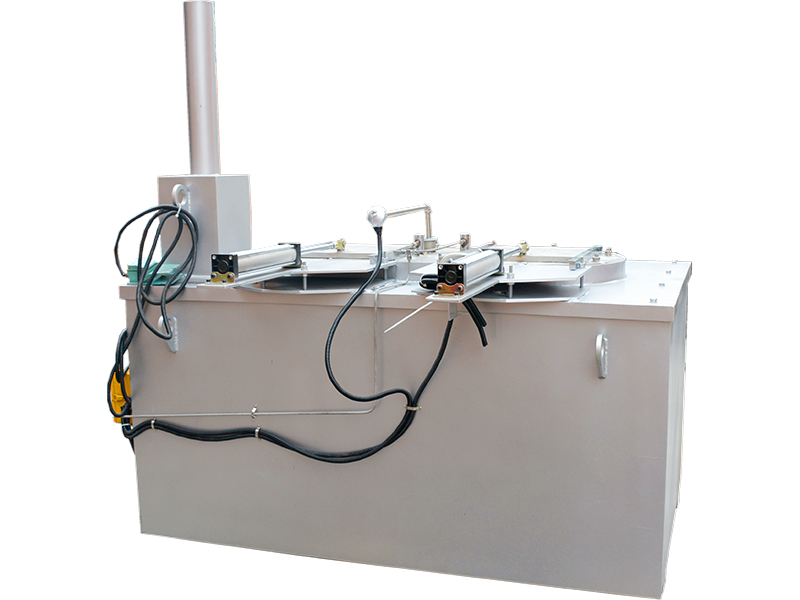

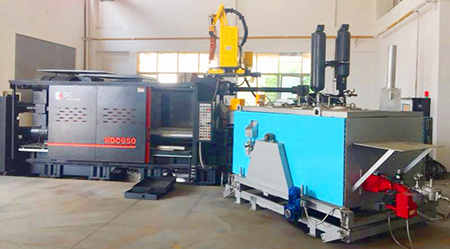

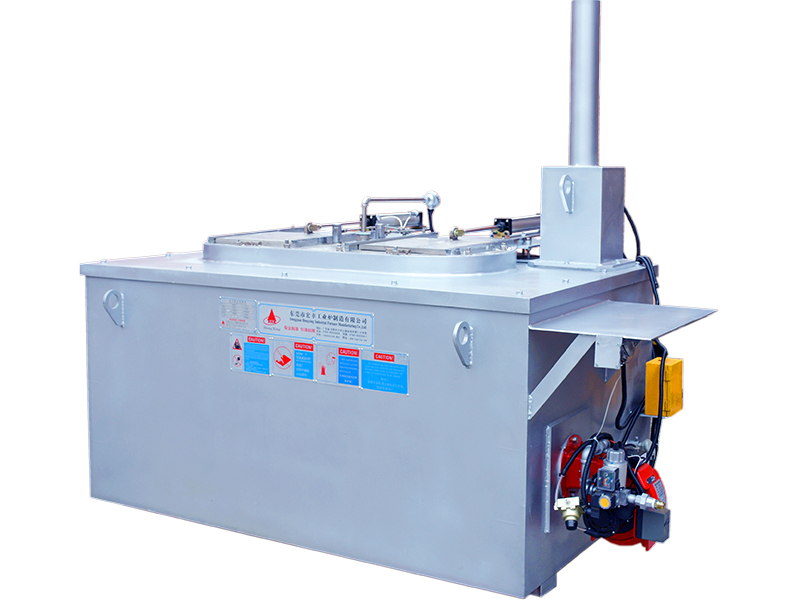

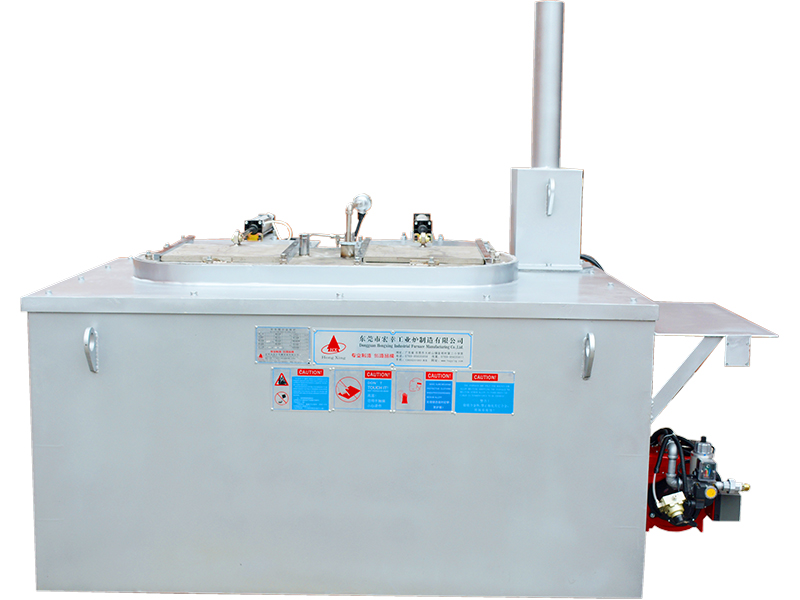

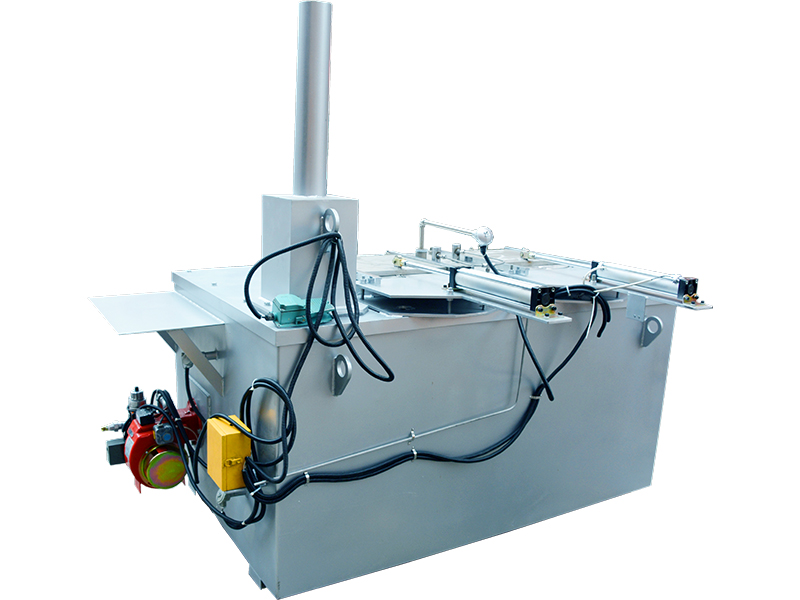

Gas Fired Magnesium Crucible Furnace

• Type: crucible
• Shape: square
• Energy: natural Gas
• Capacity: 500kg (customizable upon request by customers)
• Melting rate: 150kg/h
• Process temperature: 680°C -700°C
• Rated heating kilocalorie: ≤200,000 kcal (adjustable)
• Structure: furnace casing, furnace lining, electronic control system, composite concrete, burner.

The gas fired magnesium crucible furnace is equipment used for the melting and holding of magnesium ingots in a crucible that is directly heated with natural gas burners.

• External structure
  · Barrel casing made of 4mm thick steel plate
  · Crucible cover made of 25mm thick steel plate
  · Bottom plate made of 8mm thick steel plate
  · Cover made of 10mm thick steel plate
  · Chimney made of 6mm thick steel plate, can be flipped 90 degrees
• Construction materials of furnace lining
  · Three layers of high temperature insulation boards (Morgan-imported)
  · Insulated cotton with the density of 260
  · High-purity high-temperature insulating brick: mullite (Morgan-imported);
  · Specially developed insulation materials.

• Control panel: A. ammeter, B. current controller (manually controlled by knob), C. temperature controller, D. button switch
• Air switch
• Thyristor component (Japan Omron)
• Fuse
• Intermediate relay (CHINT)
• Three-phase meter (1:40) (Shanghai Kirtun)
• Circuit breaker and other electrical components
• Transformer (CHINT)
• Cooling Fan
• Cooling module
• Thyristor trigger (Xiamen Yudian)

• The specific gravity of magnesium alloy is 2/3 that of aluminum and 2/9 that of iron, so it is very light.
• The melting point of magnesium alloy is almost the same as that of aluminum, and the boiling point is relatively low at 420 °C.
• A large amount of magnesium powder reacting violently with water will result in ignition, and the high temperature magnesium will react with the oxygen in the air to cause combustion.
