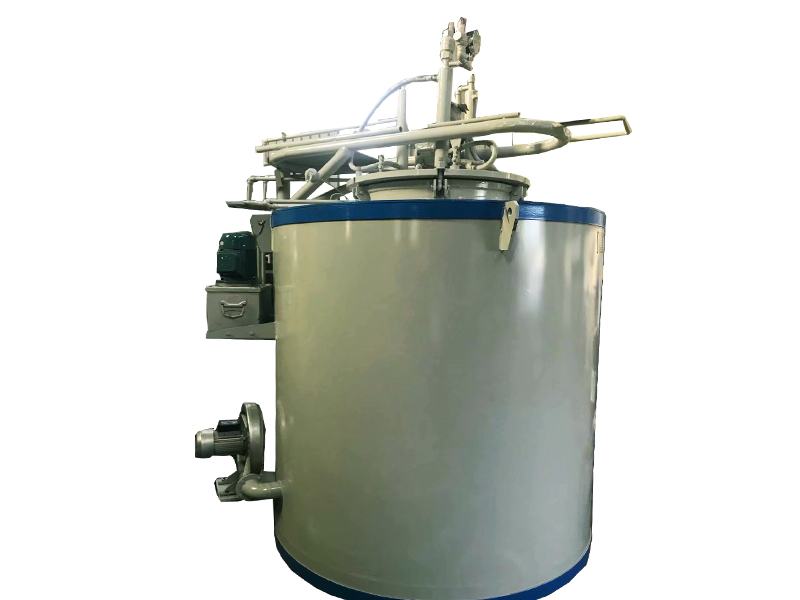

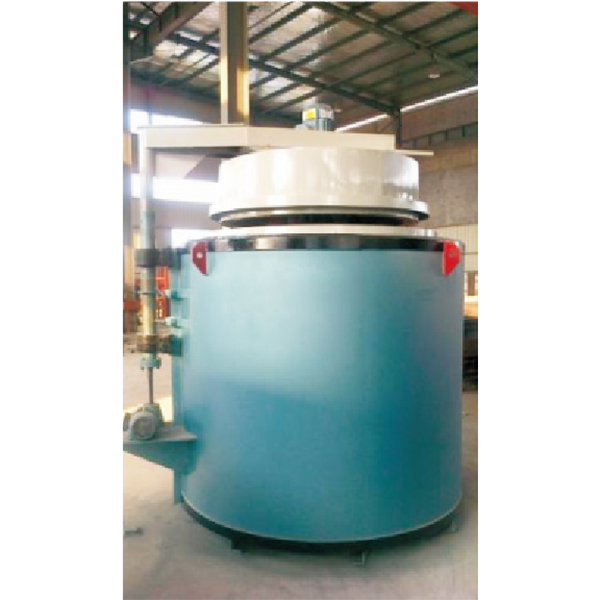

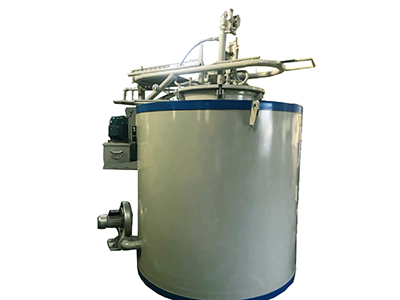

RJ2 Series 950℃ Well-type Resistance Furnace

  • Resistance Furnace
  • Resistance Furnace

The well-type resistance furnace is a batch-type electric furnace primarily used for heat treatments, including normalizing, annealing, and quenching of steel parts, particularly long pieces such as shaft parts. If necessary, a shielding gas can be introduced to reduce part oxidation.

Parameters
Model RJ2-40-9 RJ2-60-9 RJ2-65-9 RJ2-75-9 RJ2-90-9 RJ2-95-9 RJ2-125-9
Rated power (KW) 40 60 65 75 90 95 125
Rated temperature (℃) 950 950 950 950 950 950 950
No. of heating areas 1 1 2 3 1 2 3
Wiring method of heating element Y YY Y.Y Y.Y.Y YY Y.Y Y.Y.Y
Chamber size Diameter (mm) Ø600 Ø800 Ø600 Ø600 Ø1000 Ø800 Ø800
Height (mm) 800 1000 1600 2400 1200 2000 3000
No-load heat-up time (h) ≤2.5 ≤3 ≤2.5 ≤3 ≤4 ≤3 ≤4
No-load power loss (kw) ≤9 ≤13 ≤16 ≤20 ≤18 ≤22 ≤27
Heat accumulation (KW·h) ≤250 ≤500 ≤450 ≤570 ≤525 ≤620 ≤750
Max. Loading (kg) 350 800 700 1100 1500 1600 2400
Dimensions Length (mm) 1550 2150 1800 1800 2240 2100 2200
Width (mm) 1500 1620 1760 1760 1820 2000 2100
Height (mm) 2470 1900 3180 3900 2110 3470 4560
Furnace mass (kg) 1600 2400 3200 4400 3600 4000 4800
