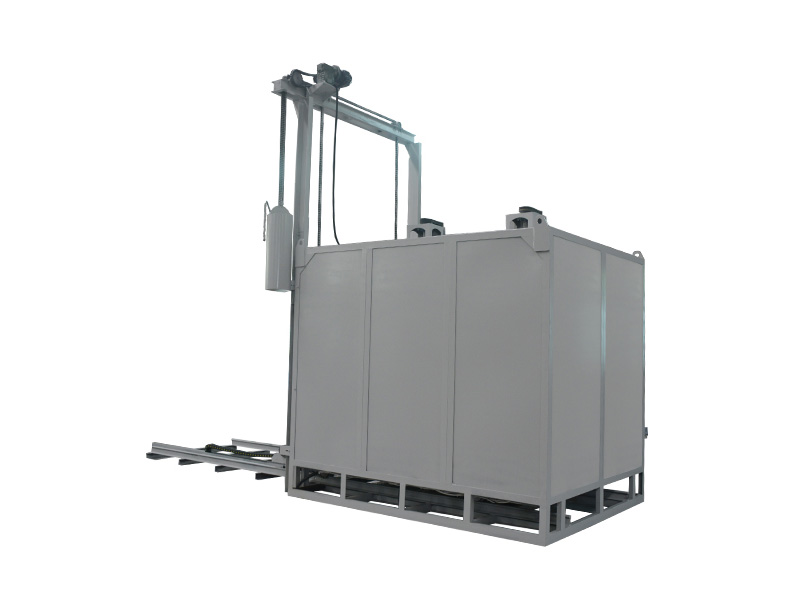

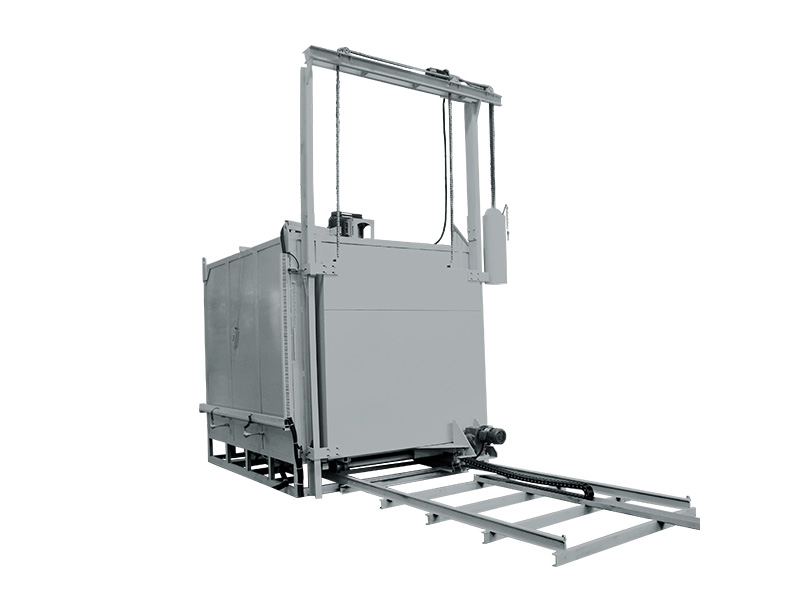

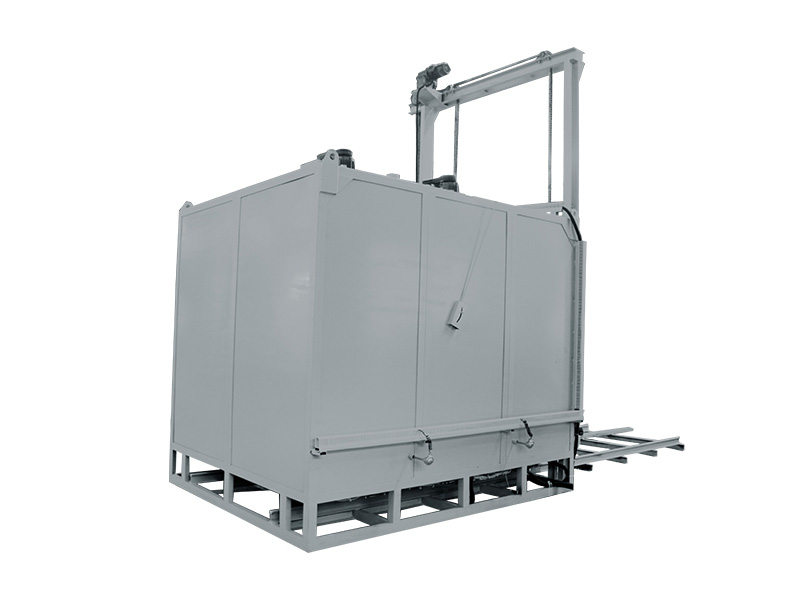

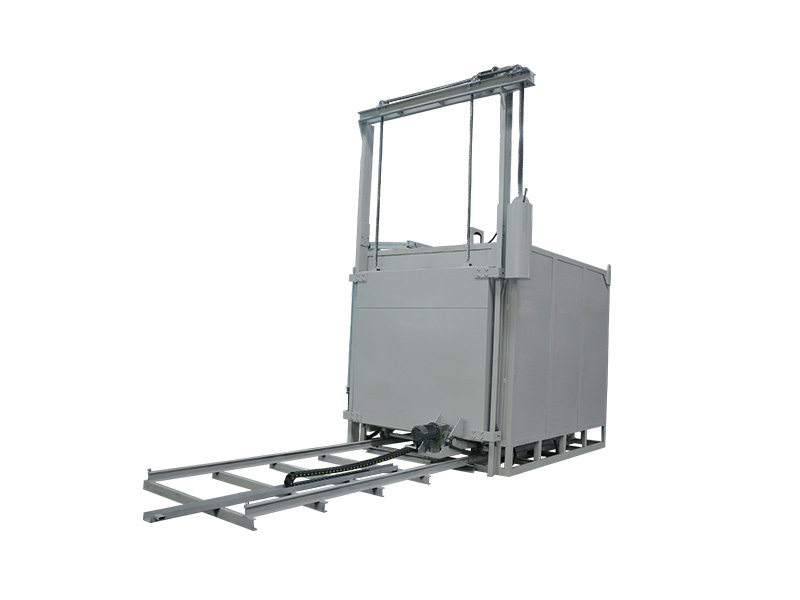

T6 Series Aluminum Aging Batch Oven
TheT6 series aluminum aging batch oven is a car bottom heat treatment furnace that is suitable for heat treatments including normalizing, annealing and quenching in oxidizing atmospheres for general metal parts. It is particularly useful for annealing of large castings, equipment stands, steel strips, steel castings, steel rings, large aluminum coils, and more. It is also commonly used in annealing copper products such as faucets and flushing valves, aging of aluminum and stainless steel products, and hardware tempering.
Parameters
| Model | RT2-65-9 | RT2-105-9 | RT2-180-9 | RT2-320-9 | |
| Rated power (KW) | 65 | 105 | 180 | 320 | |
| Rated temperature (℃) | 950 | 950 | 950 | 950 | |
| Wiring method of heating element | Y | Y | YY | YY.Y | |
| Chamber size | Length (mm) | 1100 | 1500 | 2100 | 3000 |
| Width (mm) | 550 | 800 | 1050 | 1350 | |
| Height (mm) | 450 | 600 | 750 | 950 | |
| No-load heat-up time (h) | ≤2.5 | ≤2.5 | ≤4.5 | ≤6 | |
| No-load power loss (kw) | ≤14 | ≤22 | ≤40 | ≤75 | |
| Uniformity of furnace temperature (℃) | ≤30 | ≤30 | ≤30 | ≤30 | |
| Heat accumulation (KW·h) | 315 | 640 | 1000 | 2000 | |
| Max. Loading (kg) | 1000 | 2500 | 5000 | 12000 | |
| Dimensions | Length (mm) | 3060 | 3560 | 4270 | 5370 |
| Width (mm) | 1582 | 1832 | 2600 | 3100 | |
| Height (mm) | 2480 | 2860 | 3060 | 3530 | |
| Furnace mass (kg) | 3500 | 5800 | 10500 | 19500 | |
Inquiry

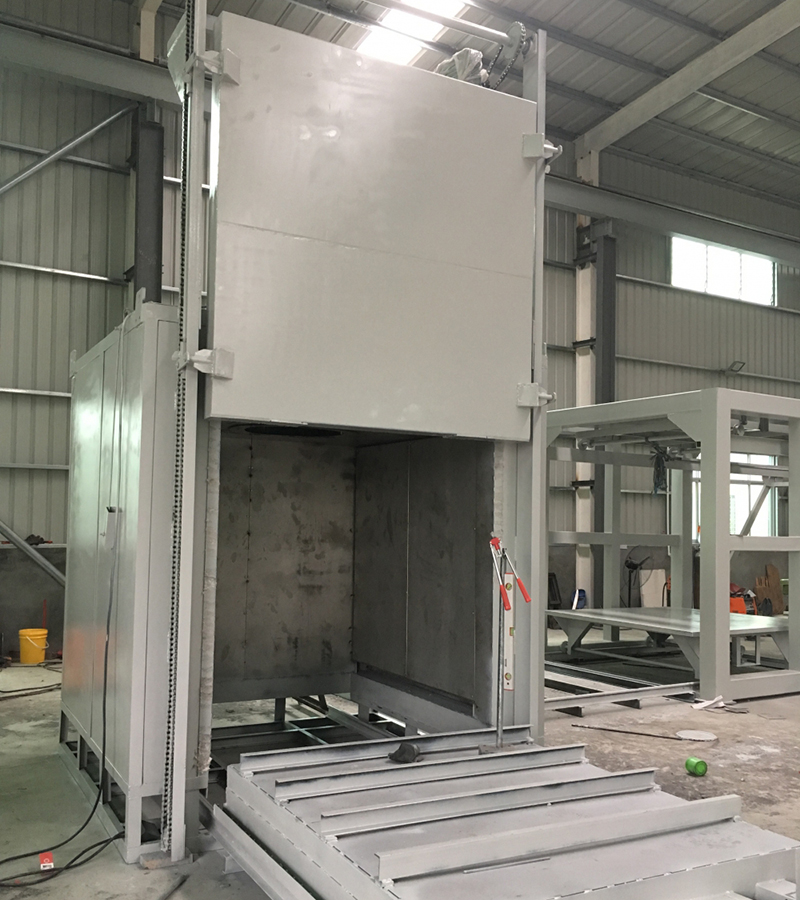

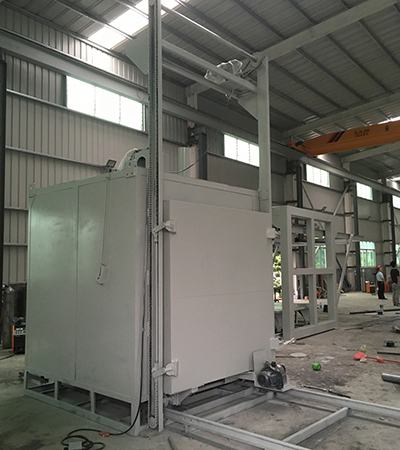

Custom-Made Furnaces Images
